Cavgenx. Turboshaft Heat Pump | Cooling and Hydraulic Power

We develop technology. You license | Build | Sell to your Customers.

Infinity Turbine TEL: +1 608-238-6001

The most unique turbine in the world... is a heat pump turbine. Common shaft drive HVAC compressor and turbine with one moving part.



CavGenX

The turboshaft heat pump.

The Concept: Combining a common shaft drive turbine to a compressor for heating, cooling, and hydraulic drive pressure is unique in its ability to serve multiple functions simultaneously.

Purpose: Provide cooling and hydraulic drive power.

Goals: AI processor cooling and hydraulic drive power.

How Does it Work ? A electric motor starts the common shaft compressor. Liquid working fluid is flashed to pressurized vapor by a cavitating disc. The vapor is then heated for more pressure. The pressurized vapor is then expanded through a common shaft turbine. The resulting shaft rotation drives the forward cavitating compressor, a hydraulic pump, and a feed pump. The vapor is then condensed (a cooling process) and can be used for cooling. In this ORC process, the evaporator is the thermal stage between the compressor and turbine. Evaporator heat can be provided by waste heat, solar thermal, AI processor heat, magnetic induction, conventional fuels, and more.

About: Infinity Turbine invented the Modular Block in 2004 and uses it for applications in Organic Rankine Cycle, cooling, and gas to liquid applications. Infinity has been developing ORC turbines, systems, and applications since 2008. In 2015, Infinity built production CO2 closed loop systems. This application is a synergy of thermal and power processing using the experience, knowledge and First Principles for turboshaft processing power.

Available for licensing. Experimenter kits and systems available.

Licensing

Heat Pump ORC Technical Guide

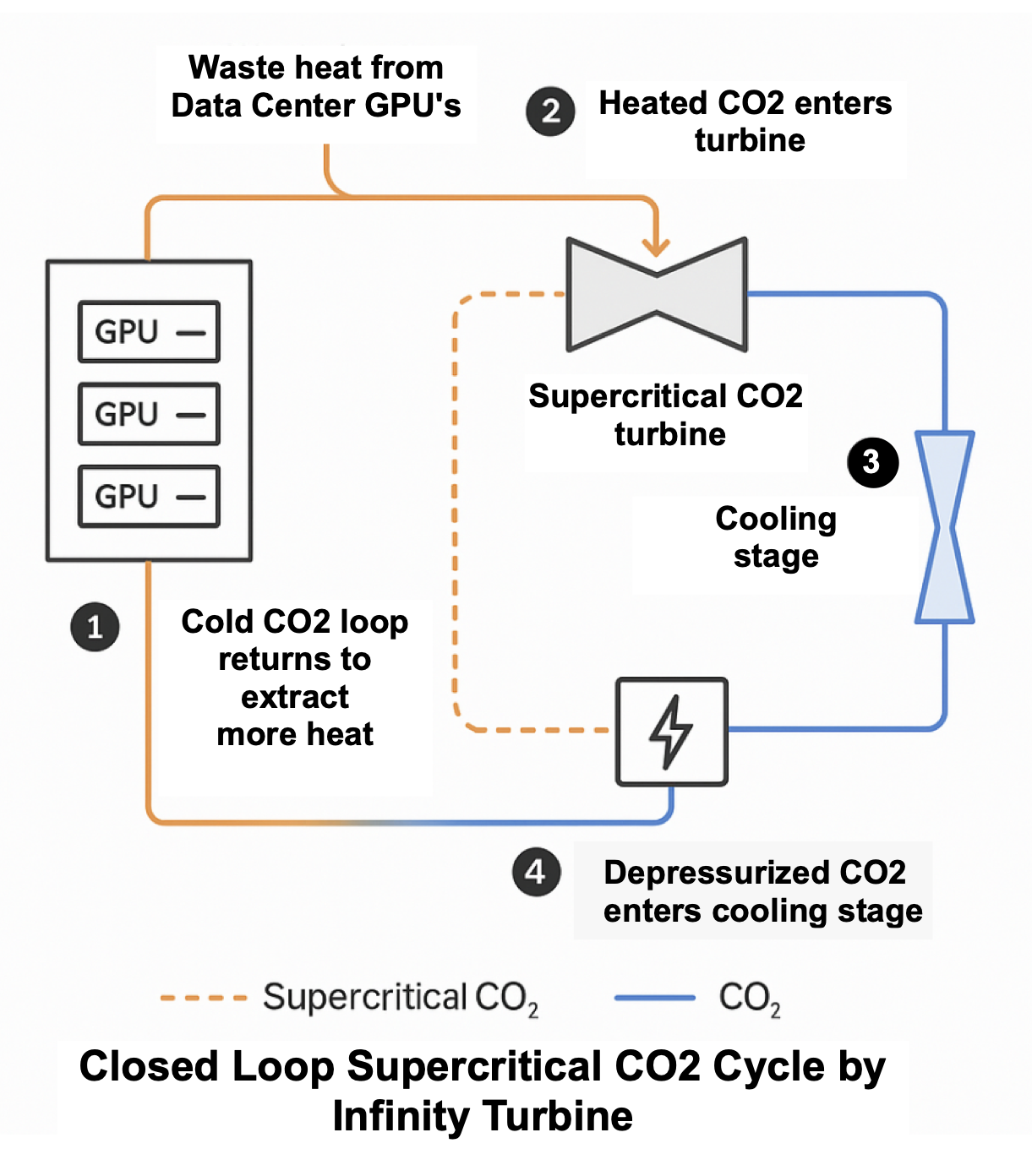

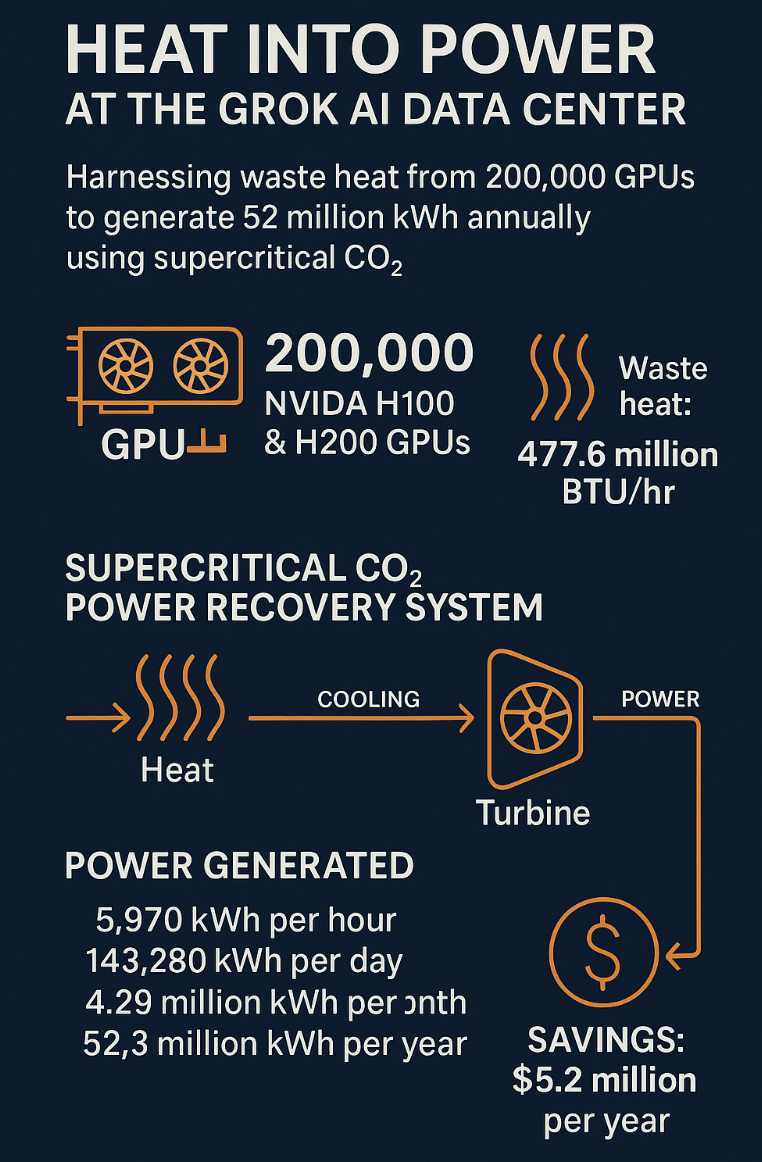

Technology Report for AI Processor Cooling using a Heat Pump Turbine


Cavgenx Heat Pump Turbine

The heat pump turbine is a product which has been in development for some time. It is a hybrid between the Brayton Cycle and Organic Rankine Cycle.

This amazing device can also be used simultaneously as a heat pump, which only leverages its use in range extending for electric cars.

The unique part of this turbine is that it can be closed-loop using CO2 as the working fluid taking advantage of sonochemistry (cavitation). Most refrigerants can be used as the working fluid for the Cavgenx heat pump turbine. The benefit is the ability to perform work using hydraulics and simultaneous cooling of the refrigerant.

Ideal for industries leveraging both hydraulic and refrigeration systems, this approach promises enhanced efficiency and compact design.

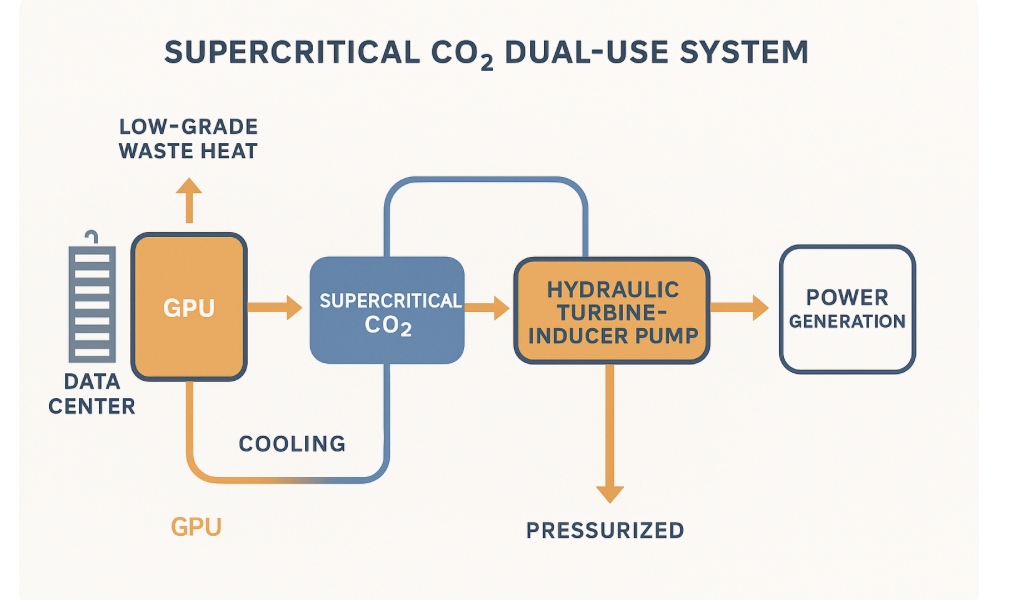

Revolutionizing Efficiency: The Cavgenx Heat Pump Turbine for Hydraulic Power

For More Info…

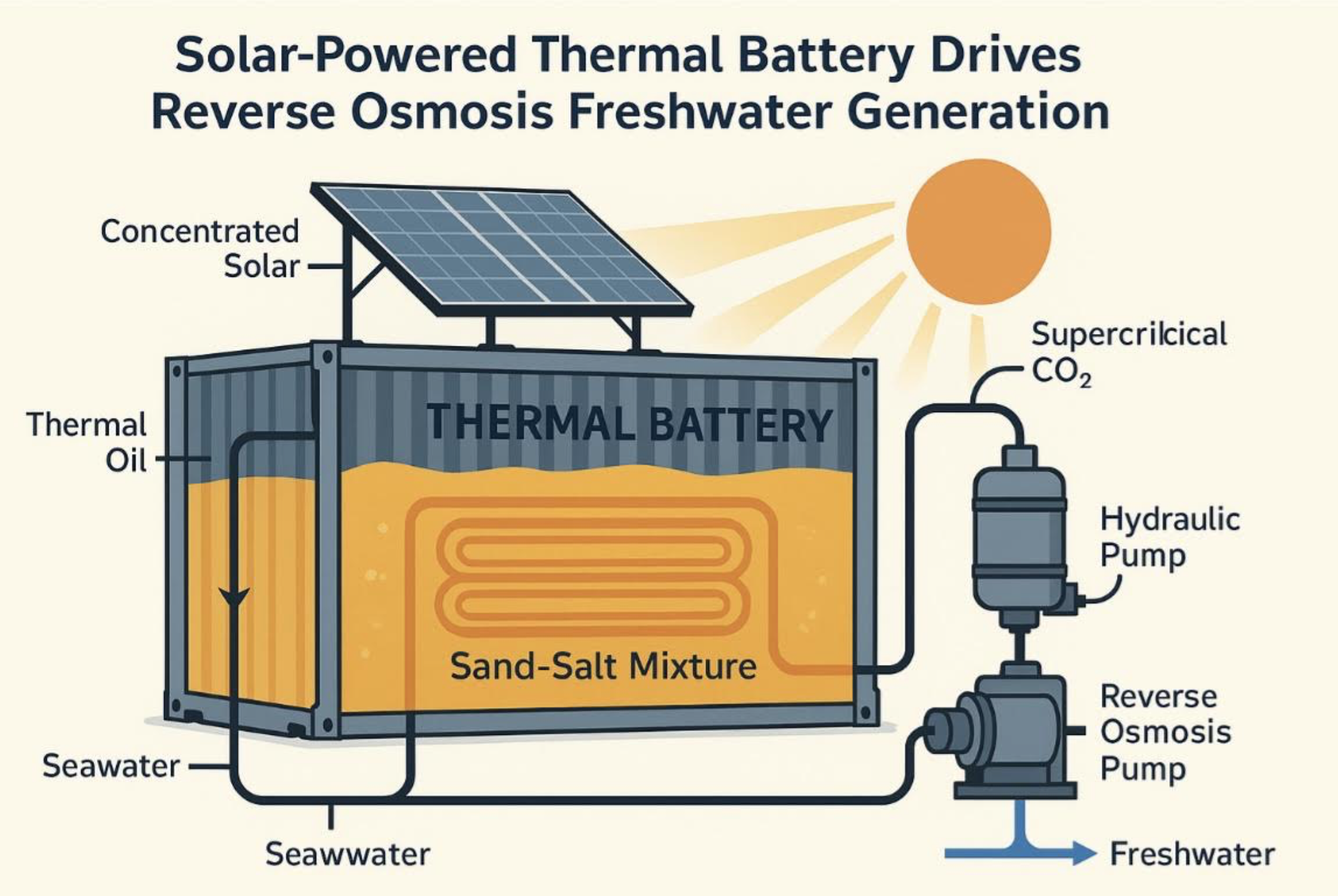

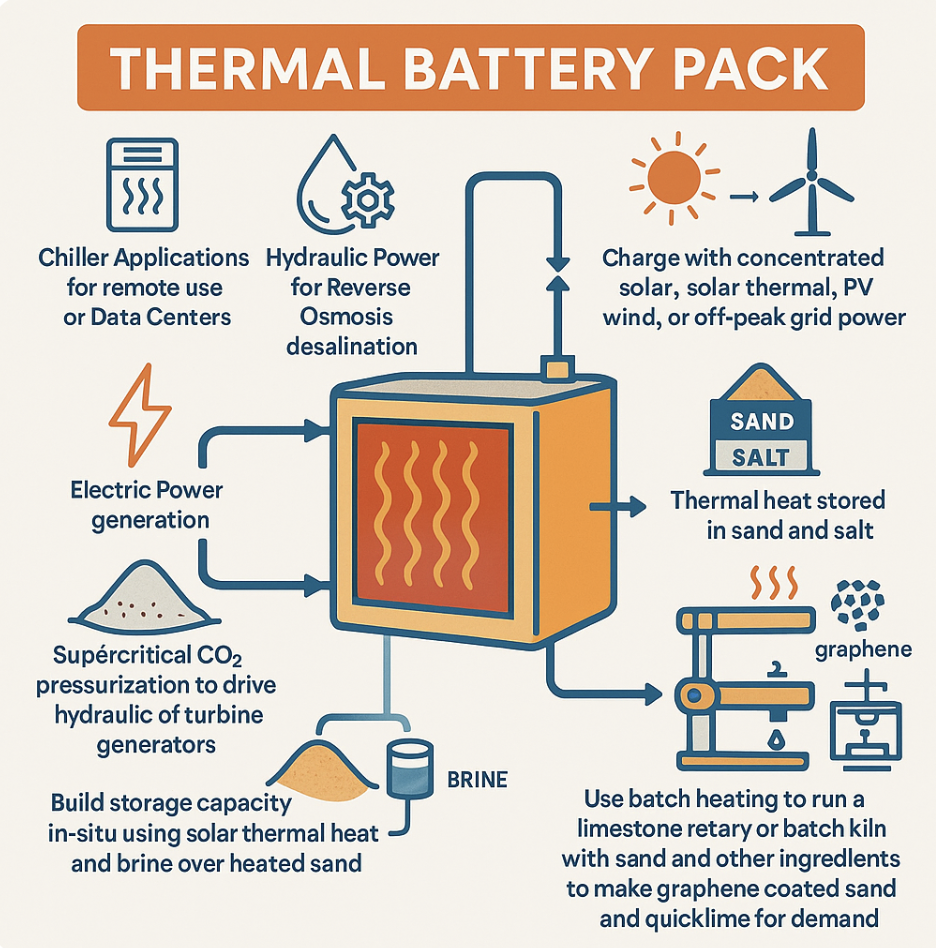

Sand Battery: Thermal Storage for use with Cavgenx Heat Pump Turbine

Technology Report for AI Processor Cooling using a Heat Pump Turbine

The Hidden Cost of AI: How Every Query Contributes to Water Scarcity


Development of a Closed Loop Micro Satellite Plasma Ion Propulsion System Based on a Cavgenx Heat Pump Turbine

The following descriptions follow through development of a space propulsion system based on the Cavgenx Heat Pump Turbine concept.

Electrical power is needed to start the process and as a topping off heat additive when needed.

The turbine would power the cavitation compressor as well as supply shaft horsepower to spin induction magnetic heating.

The high COP of the liquid cavitation compressor (already shown by NASA - see link below) is used in concert with a induction heating system to power the cycle. Note that cavitating a liquid by use of a spinning disc was invented more than 100 years ago.

The spacecraft skin would be used as a condenser heat sink for the closed-loop CO2 Organic Rankine Cycle system.

For More Info…

Cavgenx Heat Pump Turbine Cycle

Cavgenx Heat Pump Turbine Cycle

Cavgenx Heat Pump Turbine

Cavgenx Heat Pump Turbine

Multirotor Cavitation Device for Taking Liquid CO2 or  Liquid Refrigerants into Supercritical or Pressurized Phase Change Gas

Multirotor Cavitation Device for Taking Liquid CO2 or Liquid Refrigerants into Supercritical or Pressurized Phase Change Gas

Cavitation Pump


Technology Readiness Level for Cavgenx

As defined by NASA, the TRL for this project is at or above a 5.

NASA TRL Level for Cavgenx

Press Releases for Cavgenx


With every 20 to 50 AI queries, approximately half a liter of fresh water is lost in the form of steam emissions

With every 20 to 50 AI queries, approximately half a liter of fresh water is lost in the form of steam emissions

The Hidden Cost of AI: How Every Query Contributes to Water Scarcity

In our digitally-driven world, artificial intelligence (AI) has become an integral part of our daily lives, from voice assistants and recommendation algorithms to chatbots and language models. We often use AI systems without realizing the environmental impact they may have. A recent study conducted by the University of California, Riverside, sheds light on a concerning aspect of AI technology: its hidden water footprint. Each time you run a ChatGPT artificial intelligence query, you unknowingly contribute to the depletion of our already overstressed freshwater resources.

The Water Footprint of AI

The research from the University of California, Riverside, has revealed a startling fact: running AI queries that rely on cloud computations in data processing centers consumes significant amounts of freshwater resources. With every 20 to 50 queries, approximately half a liter (around 17 ounces) of fresh water is lost in the form of steam emissions. This might not seem like much on an individual basis, but the cumulative impact of billions of AI queries worldwide is a cause for concern...

Keep Reading…

AI programs consume large volumes of scarce water UCR study finds that keeping servers powered and cool at cloud data processing centers has high water costs

Making AI Less Thirsty: Uncovering and Addressing the Secret Water Footprint of AI Models

PDF Download Study

Cavgenx Turbine

Cavgenx Turbine

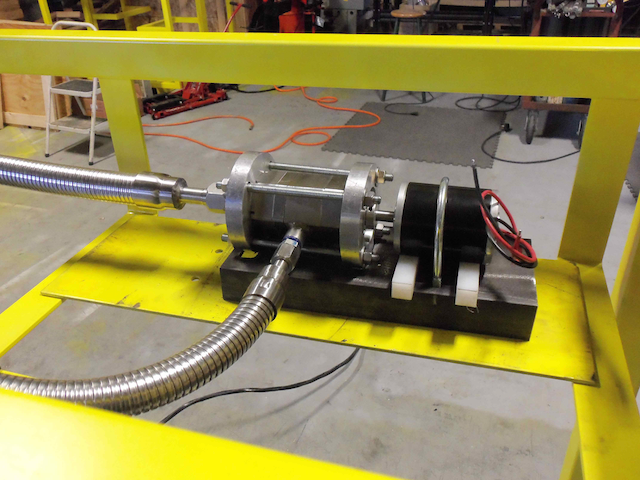

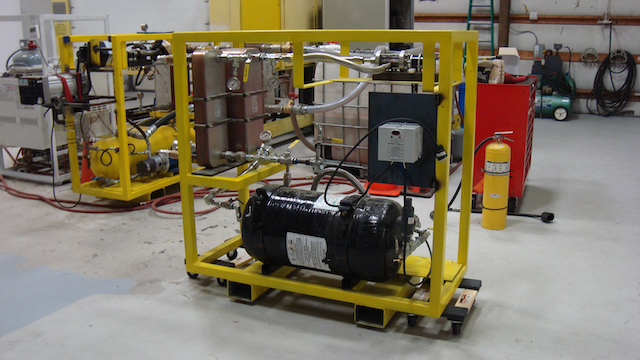

Cavgenx CO2 Turbine Test Cart

Cavgenx CO2 Turbine Test Cart

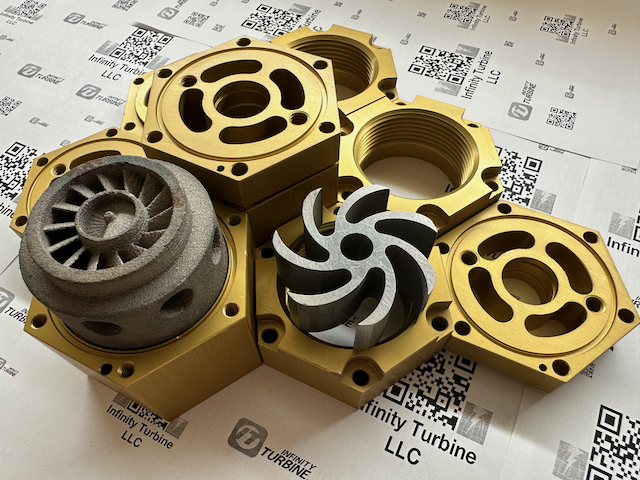

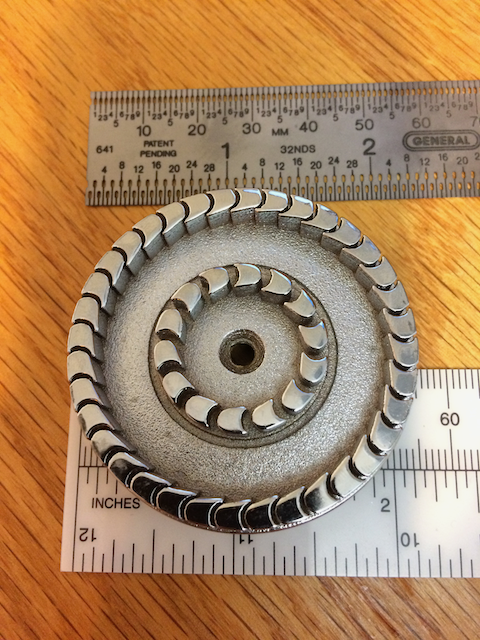

Working Fluid Expander and Cavitation Devices

Working Fluid Expander and Cavitation Devices

Infinity Turbine Gas Leverage Turbine Devices

Since 2004 Infinity has been working with and developing CO2 devices including expanders and cavitation mechanisms.

Zeolites can provide a lightweight heat source to power the Cavgenx turbine for the production of power for drones and electric aviation

Zeolites can provide a lightweight heat source to power the Cavgenx turbine for the production of power for drones and electric aviation

Zeolites for Airborne Power Unit

One interesting application of Cavgenx is airborne electric aviation (including drones). For this application, heat transfer Zeolites can produce large amounts of heat when water is applied (exited as steam) for a closed-loop CO2 based turbine generator which can provide electricity to motors to provide propulsion.

Energy Strategy Technology Guide and Handbook by Infinity Turbine

Energy Strategy Technology Guide and Handbook by Infinity Turbine

Energy Strategy Technology Guide and Handbook: your ultimate resource for navigating the world of energy strategies and technologies

Discover the power of sustainable energy systems with our comprehensive guide on Organic Rankine Cycle, Thermal Storage, Heat Pump, and Energy Arbitrage. Learn how these technologies work, their benefits, and their role in maximizing energy efficiency. Explore the potential for renewable energy and energy storage, and stay ahead of the curve in the evolving landscape of sustainable solutions. Read now for a deep dive into these key components of a greener future. For business and residential use.

Updated monthly.

Buy Now via PayPal $99

For More Info…
